We Customized 3m3 to 30m3 Compactor /compressed Garbage Truck Body

Chengli Group is the largest special-purpose vehicle manufacturer in China. We can customize ISUZU, FOTON, HOWO, SINO, JAC, SHACMAN, DONGFENG, JMC and other brand trucks according to your needs.

Equipment

Structure

Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems

Loading capacity

8m3

System of loading

Mechanized, rear loading

Modes of the pressing

Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic

Body

Version

All-metal

Shape

arc-shaped

Sidewalls

Q345 Sheet carbon steel (thickness: 4mm)

Bottom

Q345 Sheet carbon steel (thickness: 4 mm)

Roof

Q345 Sheet carbon steel (thickness: 4 mm)

Front frame

Q345 Sheet carbonaceous steel (thickness: 5 mm)

Rear frame

n-shaped profile from sheet carbon steel (thickness:5 mm)

Basis

120x120mm (thickness: 5 mm)

Loading bunker

Loading bunker

All-metal with sidewalls and a loading ladle

Volume

1.0 m3

Sidewalls

Q345 Sheet carbon steel (thickness: 6 mm)

Scraper&pushing-out plate

Q345 Sheet carbon steel (thickness: 8 mm)

Liquid drain

Drainage channel,sewage tank

Working zone Lighting

2 lamps

Mechanism of raising

Two hydraulic cylinders

Ensuring tightness

Between the body and lifting back part in the lower part profile acid-proof rubber is used.

Pressing system

Features

Control mode diversification,bidirectional compression

Pressure

16Mpa

Compaction ratio

4.0:1

Loading cycle

25-30 second

Unloading cycle

25-35 second

pressing mechanism

The giving plate and hinge related pressing plate moving on two directing bars

Pressing mode

Automatic pressing

(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately

Control of pressing

Control from the external panel on the bunker

Lifting rear part

Mechanism of lifting

Two hydraulic cylinders

Function description

Suitable for various rubbish bins

Others

Color and Logo

Optional

Standard configuration

Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control,PLC electric automatic control.

Selective configuration

multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc.



1.Upper unit installed on the chassis ,connection part is longitudinal beams on rubber pads

2.Exhaust plate in the front wall of the body ,and a rear side with a press mechanism

3.Three type of body shape .Bottom plate is reinforced by longitudinal beams

4.Push -out board is supported of the telescopic cylinder

5.Foot board &handle for maintain pipeline on the roof

6.Fluoro plastic slider for push-out plate

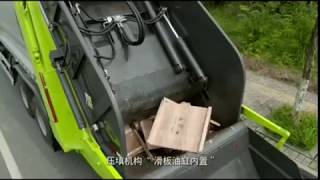

7.The rear hopper made of high quality steel and 6mm thickness ,mechanically and manually load the bucket ,raised by two cylinder

8.Hydraulic valve &plc made in Japan ,automatically distribute hydraulic oil to the cylinder as working status

9.The pressing mechanism works in automatic ,semi-automatic and manual modes . operation can single or chitinous

10.Colour & pattern as required

11.An additional push-button control unit in cab ,and buzzer in the cab for keep in touch with the operator at the rear of the garbage truck

12.Two button at the side of the body for emergency stopping

13.Spare switch ensure the operation continue going when the vehicle has malfunction

14.More kinds of lifting device

15.Safety road,monitor ,caution sign

16.Rear door ,front door ,lock hook

17.Leak proof device---no dirty water leak& omit
